Single Girder Gantry Crane

Single Girder Box Beam Gantry Crane

Gantry Crane is widely used outdoor on the big work yard to lift material. There is no need to install the steel stand column; therefore, gantry crane will not occupy too much ground space.

Generally, single girder gantry crane can be divided into3 kinds, namely single girderbox beam gantry crane, trussed type gantry crane, and semi-gantry crane.

E-Mail: sales@nucleon-cranes.com

Тel: +86-18238776721

PDF Download

Chat Now

Inquiry

Description
Specification
Related products
Inquiry

Description

Gantry Crane is widely used outdoor on the big work yard to lift material. There is no need to install the steel stand column; therefore, gantry crane will not occupy too much ground space. Generally, single girder gantry crane can be divided into3 kinds, namely single girderbox beam gantry crane, trussed type gantry crane, and semi-gantry crane.

Single Girder Box Beam Gantry Crane

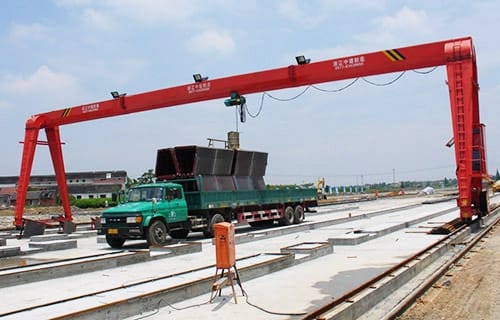

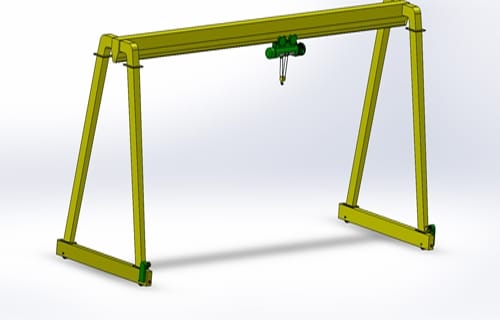

MH Model Electric Hoist Girder Gantry Crane is used together with CD MD Model electric hoists. It is a track travelling small and mediun-sized crane. Its proper lifting weight is 3-32tons, proper span is 12-30 meters, proper working temperature is -20~+40oC.

Nucleon (Xinxiang) Crane content manager system | Nucleon (Xinxiang) Crane CMS

Safety features

Crane traveling limit switch

• Weight overload protection device

• Lifting height limit device

• Voltage lower protection function

• Phase sequence protection function

• Emergency stop function

• Rain cover for outside hoist, driving units, electrical cubicle.

• Warning indicator: flashing lights and warning sound.

• Wireless infra-detector for anti-collusion

Advantages

1.Because gantry cranes ride on the ground rather than on overhead runways, they don't require a runway structure.

2.Nor do they usually require concrete foundations.

3.Their installation is fast and simple.

4.Depending on the environment and application, gantry cranes can sometimes provide the same material handling capabilities as a comparable bridge crane system, but with a significant cost savings.

5.Simple and compact structure

6.light weight

7.steady performance

8.easy maintenance

9.less wastage

Specification

Capacity			T	3	5	10		16	20
Span			m	12,16,20,24,30
Operational Method				Pendent Line With Press Button /Cabin/ Remote
Speed	Lifting		m/min	8 ,8/0.8	8,8/0.8		7,7/0.7	3.5		3.5
	Cross travelling			20	20		20	20		20
	Long travelling	Ground		20	20		20	20		20
		Cabin		20, 30,45	20, 30,40		30,40	30,40		30,40
Motor	Lifting		Type/kw	ZD41-4/4.5 ZDS1-4/0.4/4.5	ZD141-4/7.5 ZDS10.8/4.5		ZD151-4/13 ZDS11.5/4.5	ZD151-4/13		ZD152-4/18
	Cross travelling			ZDY12-4/0.4	ZDY121-4/0.8		ZDY21-4/0.8×2	ZDY121-4/0.8×2		YZD-4/0.8×4
	Long travelling	Ground		ZDY21-4/0.8×2 ZDY21-4/1.5×2	YZY22-4/1.5×2 YZR132M2-6/3.7×2		YZR22-4/1.5×2	YZR160M1-6/6.3×2 YZR160M2-6/8.5×2		YZR160M1-6/6.3×2 YZR160M2-6/8.5×2
		Cabin		ZDR100-4/1.5×2 ZDR112-4/2.1×2	YZR112L1-4/2.1×2 YZR160M1-6/2.1×2		YZR112L1-4/2.1×2 YZR160M2	YZR160M2-6/8.5×2 YZR160L2-6/11×2		YZR160M2-6/8.5×2 YZR160L2-6/11×2
Electric hoist			Model	CD1/MD1	CD1/MD1		CD1/MD1	CD1		HC
Lifting height			m	6,9
Working duty				A3
Power supply				380V 60HZ 3phase AC (According to your demand )
